Default AT Transmission Cooling for over 450 whp - 03-04-2010, 04:03 PM

Lets discuss the future need of inscreased cooling of the AT transmission when we will be starting pushing 450-500 whps.

Do we have in place right now a transmission cooler? If yes where is it located? I tried to look in RealOem with no luck.


07 335i AT - MOTIV 750 - MHD BMS E85 Flash - BMS PI - JB4G5 - Okada Coils - NGK 5992 Plugs - Helix IC - Snow Stg. 3 - Stett CP - Custom midpipes with 100 HJS Cats - Bastuck Quad - PSS10 - QUAIFE LSD - BMS OCC - Forge DVs - AR OC - ALCON BBK - M3 Chassi - Dinan CP - Velocity M rear Toe arms - Advan RZ-DF - LUX H8 - Level 10 AT upgrade
Reply With Quote
(#2)
Old
klipseracer klipseracer is offline
Junior Member

Posts: 255
Join Date: Nov 2009
Car: 335i
Default 03-04-2010, 04:10 PM

Uhm I'm told we do. I took a picture of something a while back and I was told it was the AT cooler. Its not very big and it bolts to the fan shroud on the bottom. I've got a picture somewhere but its silver metal.
Reply With Quote
(#3)
Old
enrita's Avatar
enrita enrita is offline
Junior Member

Posts: 291
Join Date: Sep 2008
Car: 335i
Default 03-04-2010, 04:13 PM

cool thanks, will try to look more closely on realoem than. must be tiny .


07 335i AT - MOTIV 750 - MHD BMS E85 Flash - BMS PI - JB4G5 - Okada Coils - NGK 5992 Plugs - Helix IC - Snow Stg. 3 - Stett CP - Custom midpipes with 100 HJS Cats - Bastuck Quad - PSS10 - QUAIFE LSD - BMS OCC - Forge DVs - AR OC - ALCON BBK - M3 Chassi - Dinan CP - Velocity M rear Toe arms - Advan RZ-DF - LUX H8 - Level 10 AT upgrade
Reply With Quote
(#4)
Old
midlife's Avatar
midlife midlife is offline
maniac

Posts: 265
Join Date: Jan 2008
Car: e93
Default 03-04-2010, 04:18 PM

Hey you guys: I think VK may be incorporating an upgraded AT cooler in his upgraded radiator project. That product is being developed right now.

On the other forum, you guys should post in his radiator thread and make some noise about the AT cooler. I will also do this myself.


if your car isn't scary - it's just not fast enough !
JB3 2.0 beta / BMS Tuning Gauge / RPI IC / UR non catted *** / UR CAI / Quiaife LSD / Snow Methanol Injection / VK Oil Cooler / Forge DVs
Riss Catch Can / M3 Rear Sway Bar / M Sport Steering Wheel / Paddle Shifting 6AT / Logic 7 / Dunlop Direzza Z1 235/255
Reply With Quote
(#5)
Old
raceyBMW's Avatar
raceyBMW raceyBMW is offline
king of the hills

Posts: 41
Join Date: Jan 2008
Car: E92 335i
Default 03-04-2010, 04:21 PM

The AT cooler is integrated into the radiator.

Quote:
It is also possible in an N54 engine in conjunction with an automatic gearbox to utilize the lower area of the radiator to cool the gearbox by means of the gearbox-oil cooler. This is achieved as in the N52 engine with control sleeves, which are introduced into the radiator tank.
Attached Images

Reply With Quote
(#6)
Old
Jaza45 Jaza45 is offline
Junior Member

Posts: 32
Join Date: Jun 2009
Car: LSB E90 335I
Default 03-04-2010, 04:43 PM

The AT cooler is on the drivers side at the bottom of the fan shroud and will be hard to get and upgraded one because the coolant cools it down, not air, so you would have to modify the coolant hoses by bypassing it and then make an adaptor for new fittings on the transmission side....
Reply With Quote
(#7)
Old
midlife's Avatar
midlife midlife is offline
maniac

Posts: 265
Join Date: Jan 2008
Car: e93
Default 03-04-2010, 05:21 PM

Will post up a link to the VK radiator and AT tranny cooler :-)


if your car isn't scary - it's just not fast enough !
JB3 2.0 beta / BMS Tuning Gauge / RPI IC / UR non catted *** / UR CAI / Quiaife LSD / Snow Methanol Injection / VK Oil Cooler / Forge DVs
Riss Catch Can / M3 Rear Sway Bar / M Sport Steering Wheel / Paddle Shifting 6AT / Logic 7 / Dunlop Direzza Z1 235/255
Reply With Quote
(#8)
Old
BuLoOoSki's Avatar
BuLoOoSki BuLoOoSki is offline
New Member

Posts: 20
Join Date: Jan 2008
Car: 2015 BMW M3
Default 03-04-2010, 07:16 PM

From what I know is that extended part at the botton of the tranny (where the transmission would sit on if you'd place it on the floor) in this pic is what supposed to be the transmission cooler, or atleast something to do with the transmission cooling



2015 BMW M3: Mineral White / SO Full Merino Leather / Executive Package / Lighting Package / 19" Black Wheels / Adaptive M Suspension / M Double-Clutch Transmission / Harman Kardon Sound
2007 BMW 335i Coupe (SOLD): BMS JB4 / Quaife LSD / RR C@less *** / Helix Intercooler / VK Motorwerks Oil Cooler / AFE Intake / STETT Charge Pipe / Forge DVs / MFD Scoops / RR Oil Catch Can
Reply With Quote
(#9)
Old
klipseracer klipseracer is offline
Junior Member

Posts: 255
Join Date: Nov 2009
Car: 335i
Default 03-04-2010, 08:44 PM

Quote:
Originally Posted by Jaza45
The AT cooler is on the drivers side at the bottom of the fan shroud and will be hard to get and upgraded one because the coolant cools it down, not air, so you would have to modify the coolant hoses by bypassing it and then make an adaptor for new fittings on the transmission side....
This location is correct. I'm trying to dig up the picture I have of it. Its shaped funny and it would be upgradable. Still digging for a picture. I'm pretty sure I have a thread on the other forum named, "What the heck is this?"
Reply With Quote
(#10)
Old
DaleM's Avatar
DaleM DaleM is offline
Band

Posts: 188
Join Date: Sep 2008
Car: 135i
Default 03-04-2010, 09:22 PM

Are you having issues with the stock system failing or interfering with your performance? If you are doing road courses or long high rev runs or laps then I could see a potential desire for this upgrade. Living in those desert environments might make me think about this mod too.


Vae Victis!

If you are not going Juice Box then you are going slow.
Reply With Quote
(#11)
Old
Jaza45 Jaza45 is offline
Junior Member

Posts: 32
Join Date: Jun 2009
Car: LSB E90 335I
Default 03-04-2010, 09:28 PM

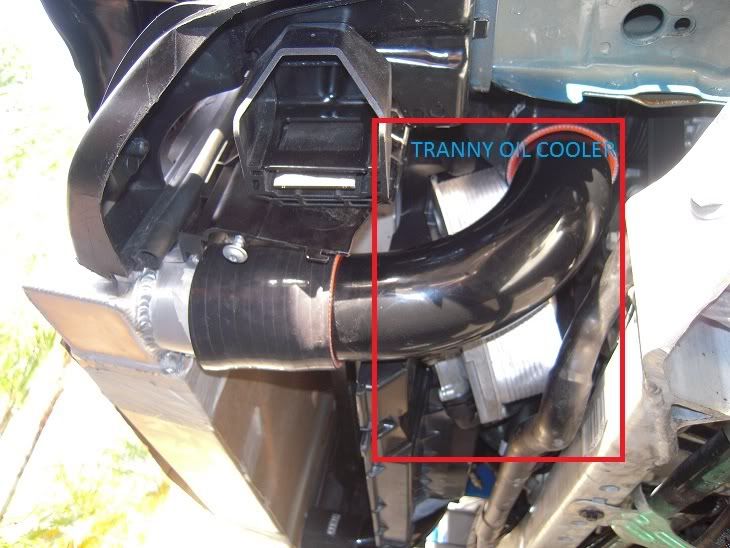

I found a pic from when I was installing my Intercooler

Reply With Quote
(#12)
Old
enrita's Avatar
enrita enrita is offline
Junior Member

Posts: 291
Join Date: Sep 2008
Car: 335i
Default 03-04-2010, 11:33 PM

Ok , seems that basically all you need is a better radiator and tranny radiator? 1 and 2 ?


07 335i AT - MOTIV 750 - MHD BMS E85 Flash - BMS PI - JB4G5 - Okada Coils - NGK 5992 Plugs - Helix IC - Snow Stg. 3 - Stett CP - Custom midpipes with 100 HJS Cats - Bastuck Quad - PSS10 - QUAIFE LSD - BMS OCC - Forge DVs - AR OC - ALCON BBK - M3 Chassi - Dinan CP - Velocity M rear Toe arms - Advan RZ-DF - LUX H8 - Level 10 AT upgrade
Reply With Quote
(#13)
Old
klipseracer klipseracer is offline
Junior Member

Posts: 255
Join Date: Nov 2009
Car: 335i
Default 03-05-2010, 12:11 PM

Quote:
Originally Posted by Jaza45
I found a pic from when I was installing my Intercooler

BINGO! This is it. I won't waste my time looking for my picture anymore because this is a much better one. This thing isn't secured very well IIRC. There should be a way to upgrade this thing. The hoses that go into it are metal and I don't know how easy it would be to change it out.
Reply With Quote
(#14)
Old
George @ BMS's Avatar
George @ BMS George @ BMS is offline
Legend

Posts: 1,266
Join Date: Aug 2009
Car: E90 BMW 335i AT
Default 03-05-2010, 04:23 PM

Some food for thought.
A tranny cooler is not such a simple thing to just assume you need a bigger one. There is a lot of research required. Firstly, you need to find out the operating temperature spectrum of your tranny oil and see if you exceed it at any point. If we do exceed it you then have to calculate how more efficient you want your cooler to be. Remember the tranny oil is similar to engine oil and only operates effectively once it reaches a certain temperature. Making the oil too cool might be detrimental to the gearbox and you might be worse of with a more efficient cooling system.


2014 VW Golf 7 R
2014 VW Golf GTI
2019 Porsche Cayenne Turbo
Reply With Quote
(#15)
Old
Terry @ BMS's Avatar
Terry @ BMS Terry @ BMS is offline
Tuner

Posts: 32,859
Join Date: Jan 2008
Default 03-05-2010, 04:38 PM

It has a water/fluid cooler as has been mentioned. But at the 500rw level will require some investigation. Most of us are in the 400-450rw level and its not a huge issue.


Burger Motorsports
Home of the JB4 the worlds most popular turbocharged tuning system!

It is the sole responsibility of the purchaser and installer of any BMS part to employ the correct installation techniques required to ensure the proper operation of BMS parts, and BMS disclaims any and all liability for any part failure due to improper installation or use. It is the sole responsibility of the customer to verify that the use of their vehicle and items purchased comply with federal, state and local regulations. BMS claims no legal federal, state or local certification concerning pollution controlled motor vehicles or mandated emissions requirements. BMS products labeled for use only in competition racing vehicles may only be used on competition racing vehicles operated exclusively on a closed course in conjunction with a sanctioned racing event, in accordance with all federal and state laws, and may never be operated on public roads/highways. Please click here for more information on legal requirements related to use of BMS parts.
Reply With Quote
(#16)
Old
Jaza45 Jaza45 is offline
Junior Member

Posts: 32
Join Date: Jun 2009
Car: LSB E90 335I
Default 03-06-2010, 08:38 AM

I just took a look under the car and it looks like its not that difficult to do a tranny oil cooler, it wold probably cost me no more than $300 if I do it myself....

I just did my own oil cooler retrofit on my car for less than $600 with a big 35 row oil cooler, my car is loving it, the temps stay at 220-230max
Reply With Quote
(#17)
Old
Terrance28's Avatar
Terrance28 Terrance28 is offline
New Member

Posts: 10
Join Date: Aug 2008
Car: BMW 335i
Send a message via Yahoo to Terrance28
Default 03-06-2010, 09:08 AM

Jaza did you already have the stock oil cooler on yours?


E92 335i Crimson Red|JB3 2.0|Stett Intercooler W/N2o Bung|AFE DCI|Stett Charge pipe W/Meth Bungs|Synapse BOV|Devil's Own Stage1 Kit|Dynotune N2o Stage1 Kit W/Progressive controller & NX noid|ATI Gauge Pod|VEI Boost,A/F Gauge|Cyba Scoops|RR OCC|19" M6 Reps|Aero Lip|Color Matched Grills|Eibach Pro kit|Momo Knob|M3 Spoiler|Carbon8 PD Hood|Vynil Roof|Shadowline Trim|ACS Roof Spoiler|Carbon Interior|MFD M3 skirts|Raceland DP|BMS V3 DP Fix|Magnaflow Race exhaust|
Reply With Quote
(#18)
Old
Jaza45 Jaza45 is offline
Junior Member

Posts: 32
Join Date: Jun 2009
Car: LSB E90 335I
Default 03-06-2010, 06:10 PM

Quote:
Originally Posted by Terrance28
Jaza did you already have the stock oil cooler on yours?
Nop, no stock oil cooler, I did everything from scratch...
Reply With Quote
(#19)
Old
Terrance28's Avatar
Terrance28 Terrance28 is offline
New Member

Posts: 10
Join Date: Aug 2008
Car: BMW 335i
Send a message via Yahoo to Terrance28
Default 03-06-2010, 08:24 PM

Please explain how you did this.


E92 335i Crimson Red|JB3 2.0|Stett Intercooler W/N2o Bung|AFE DCI|Stett Charge pipe W/Meth Bungs|Synapse BOV|Devil's Own Stage1 Kit|Dynotune N2o Stage1 Kit W/Progressive controller & NX noid|ATI Gauge Pod|VEI Boost,A/F Gauge|Cyba Scoops|RR OCC|19" M6 Reps|Aero Lip|Color Matched Grills|Eibach Pro kit|Momo Knob|M3 Spoiler|Carbon8 PD Hood|Vynil Roof|Shadowline Trim|ACS Roof Spoiler|Carbon Interior|MFD M3 skirts|Raceland DP|BMS V3 DP Fix|Magnaflow Race exhaust|
Reply With Quote
(#20)
Old
hotrod182 hotrod182 is offline
Junior Member

Posts: 72
Join Date: Jan 2008
Default 03-06-2010, 09:14 PM

Some more pics


11 335d M-sport JBD 12.3 @ 110.48
12 LEAF 106 MPGe
08 335i Sedan 11.11 @ 129.43
08 335i Coupe JB3 2.0 11.33 @ 132.77
60-130mph: 6.95 seconds
Reply With Quote
(#21)
Old
DBFIU DBFIU is offline
Joose Bocks

Posts: 33
Join Date: Dec 2009
Car: 135, AT, JB3, DCI...
Default 03-06-2010, 09:53 PM

Cooler isnt always better. as was mentioned before, fluids perform at operating temperatures, since cars spend most of their time in this operating temperature range, that is the intent of the fluid.

So keeping fluids overly cool is not a good thing. Not saying big coolers are bad, Im saying if you arent observing any excessively high temperatures, then leave it be.
Reply With Quote
(#22)
Old
klipseracer klipseracer is offline
Junior Member

Posts: 255
Join Date: Nov 2009
Car: 335i
Default 03-14-2010, 12:45 PM

I was under the car so I decided to snap this:

Reply With Quote
(#23)
Old
enrita's Avatar
enrita enrita is offline
Junior Member

Posts: 291
Join Date: Sep 2008
Car: 335i
Default 03-14-2010, 01:34 PM

thanks for the video. that thing really looks like it does not belong there. Maybe a better radiator will be providing cooler temps to that too and there wont be a need to upgrade it.


07 335i AT - MOTIV 750 - MHD BMS E85 Flash - BMS PI - JB4G5 - Okada Coils - NGK 5992 Plugs - Helix IC - Snow Stg. 3 - Stett CP - Custom midpipes with 100 HJS Cats - Bastuck Quad - PSS10 - QUAIFE LSD - BMS OCC - Forge DVs - AR OC - ALCON BBK - M3 Chassi - Dinan CP - Velocity M rear Toe arms - Advan RZ-DF - LUX H8 - Level 10 AT upgrade
Reply With Quote
(#24)
Old
Taron's Avatar
Taron Taron is offline
Senior Member

Posts: 584
Join Date: Jan 2013
Car: 2008 BMW 335XI
Default 08-22-2013, 12:37 PM

OK guys, this seems to be very old thread, but i want to flesh it up a bit. With bigger turbos those with AT might experience issues with their transmissions. And i believe since 2010 we started putting more power on trany. So please share experience with upgrading cooler. Low temps can save some life.

Thanks


2008 335XI(E92) AT/ garrett gtx3582r with jpworks manifold 1.06AR housing/ tial mv-s 38mm wgs(13.5 psi springs)/ tial bov/ fuel it level1 upgrade/ index 12 injectors/ N20 Map sensor/JB4 ST TS BEF with MHD/ Alpina Flash for now.
Reply With Quote
(#25)
Old
klipseracer klipseracer is offline
Junior Member

Posts: 255
Join Date: Nov 2009
Car: 335i
Default 08-22-2013, 01:38 PM

Ive had great success by pouring liquid nitrogen into my gas tank.
Reply With Quote
