Default PnP 6AT Transmission cooler - 04-01-2016, 08:39 PM

Edit: group buy is up in the for sale section.


Whats up everyone,

I've been working on a kit for a few weeks now and have finally come up with something that I believe will be a no compromise solution for the cooling demands of the 6hp21 in our cars.

With the new data points we have available with temp monitoring its quickly becoming apparent that this is yet another major weakness in the n54's cooling system.

What I have put together will be a fully bolt on, no trimming, drilling or cutting replacement of the factory heat exchanger.
It will utilize
- xlr8dmotorsports ATF cooler adapter fittings.
- Improved racing 165* t-stat,
- Improved racing FXH225 core
- Fragola -8an fittings with aeroquip hose
- Fully custom bracketry for the lines, core and t stat.
- Plugs and clamps for factory coolant lines

At this point i'm going to fab a small batch of the final revision of bracketry, do finish powder coating and then finally assemble a few complete kits.

I must give credit to Aubeast86 for inspiring the design as well as his line adapters which are the base of my kit. He has been extremely helpful throughout this process and really went out of his way to help with questions and ideas.

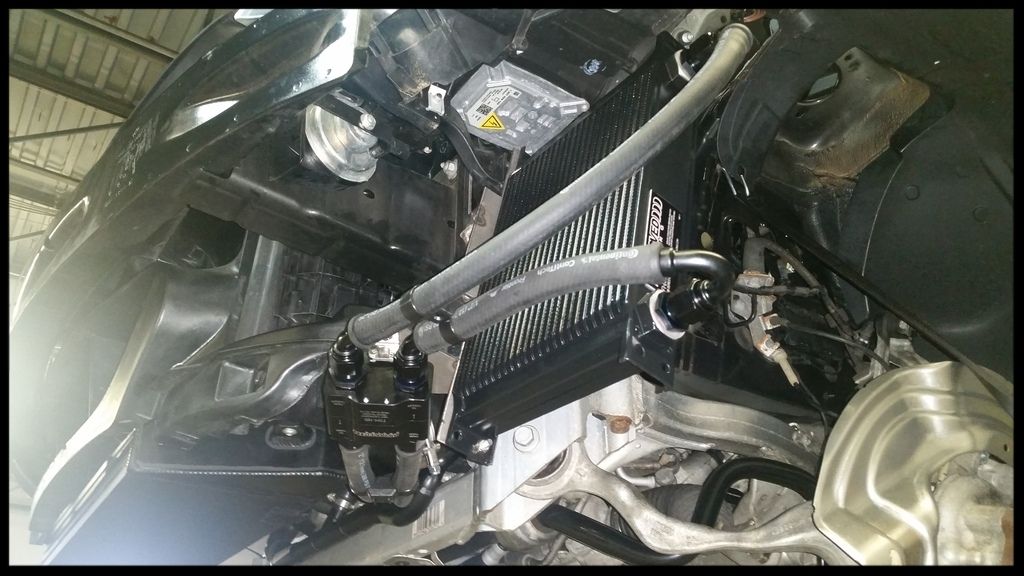

Anyways enough rambling, here is a picture from the final mock-up



*final note, the hose pictured is not what will be used in the final revision

Last edited by DirtKurt; 04-24-2016 at 10:08 AM..
Reply With Quote
(#2)
Old
PR3CI5N335i's Avatar
PR3CI5N335i PR3CI5N335i is offline
Need4Speed

Posts: 1,083
Join Date: Nov 2011
Car: 2010 E90 335i M-sport
Default 04-01-2016, 09:19 PM

Looks good. When will you have results of the trans temps with this kit? Now that the JB4 logs trans temps, we know what cruising temps are and what spirited driving temps reach. Hopefully your kit lowers oil temps 20+ degrees. If so, depending on the price, I will for sure want a kit.


SOLD - FBO N54, Pure Turbos stage 2, TFT inlets, JB4/MHD, EOS intake manifold w/PI, Fuel-it stage 3
Reply With Quote
(#3)
Old
DirtKurt's Avatar
DirtKurt DirtKurt is offline
Junior Member

Posts: 88
Join Date: Oct 2015
Car: 09 335i 6AT Coupe
Default 04-01-2016, 09:27 PM

Quote:
Originally Posted by PR3CI5N335i
Looks good. When will you have results of the trans temps with this kit? Now that the JB4 logs trans temps, we know what cruising temps are and what spirited driving temps reach. Hopefully your kit lowers oil temps 20+ degrees. If so, depending on the price, I will for sure want a kit.
Hopefully going to have the car back on the road in a few weeks. You can extrapolate some of Aubeast86 results as his setup is very similar but with a smaller core. He has some documentation down here http://www.xlr8dmotorsports.com/bmw-...pter-fittings/
Reply With Quote
(#4)
Old
thm8d thm8d is offline
Junior Member

Posts: 83
Join Date: Jul 2015
Car: 07 335i
Default 04-02-2016, 03:04 AM

I'm definitely interested in this! I'll be on the lookout
Reply With Quote
(#5)
Old
AUbeast86's Avatar
AUbeast86 AUbeast86 is offline
Senior Member

Posts: 764
Join Date: Nov 2012
Car: 2007 335i e92 Coupe
Default 04-02-2016, 06:01 AM

Awesome setup, Kurt! Much better than mine. Great work!
Reply With Quote
(#6)
Old
DirtKurt's Avatar
DirtKurt DirtKurt is offline
Junior Member

Posts: 88
Join Date: Oct 2015
Car: 09 335i 6AT Coupe
Default 04-02-2016, 06:23 AM

One more shot

Reply With Quote
(#7)
Old
E92 420 E92 420 is offline
Junior Member

Posts: 132
Join Date: Jul 2014
Car: 335i
Default 04-02-2016, 06:29 AM

Nice work man! Would Definatly be interested in this


UK V8Bait Tuned
Built Motor
TD Turbo 335i
Reply With Quote
(#8)
Old
_ink's Avatar
_ink _ink is offline
Senior Member

Posts: 530
Join Date: Nov 2012
Car: 335i DCT
Default 04-02-2016, 06:44 AM

That looks great! any pics of the bracketry?

Last edited by _ink; 04-02-2016 at 07:09 AM..
Reply With Quote
(#9)
Old
seroga1986's Avatar
seroga1986 seroga1986 is offline
Junior Member

Posts: 408
Join Date: Nov 2012
Car: 135i
Default 04-02-2016, 07:37 AM

Will this utilize the stock heat exchanger unit as some of us live in cold climates? If so, how will you hook up the outlet from heat exchanger?


2008 135i Sport 6at
JB4 G5 ISO, MHD E85 KR, Fuel-it S1, E55 Mix, Alpina Trans Flash, afe Scoops, My own custom 2.5" inlets, ER CP, Synapse BOV, 3.5 Tmap, 7.5" Phoenix FMIC, NGK 5992, 3" BMS downtubes, N55 Mids, Berk Race, BMS OCC, 48 plate oil cooler, 36 plate trans fluid cooler, PSS, R888, Hoosier DRs.
11.92@123.6 (JB4 ISO, DCI, IC, **, DR, on e45 & 17psi)(2013)
444whp/481wtq @19psi and e60 (2013)

2013 X3 xDrive28i M-package
JB4, K&N drop-in, ER downtube, Map 2 @ 22psi on 93
Reply With Quote
(#10)
Old
Race8877's Avatar
Race8877 Race8877 is offline
Junior Member

Posts: 437
Join Date: Apr 2015
Car: BMW 135I
Default 04-02-2016, 07:40 AM

Is this the same like Evolution Racewerks oil coolers?
Reply With Quote
(#11)
Old
seroga1986's Avatar
seroga1986 seroga1986 is offline
Junior Member

Posts: 408
Join Date: Nov 2012
Car: 135i
Default 04-02-2016, 07:47 AM

Also you might want to stick to the LPD (low pressure drop) coolers that are made specifically for transmissions. Huge coolers and 30psi of pressure might be a problem.


2008 135i Sport 6at
JB4 G5 ISO, MHD E85 KR, Fuel-it S1, E55 Mix, Alpina Trans Flash, afe Scoops, My own custom 2.5" inlets, ER CP, Synapse BOV, 3.5 Tmap, 7.5" Phoenix FMIC, NGK 5992, 3" BMS downtubes, N55 Mids, Berk Race, BMS OCC, 48 plate oil cooler, 36 plate trans fluid cooler, PSS, R888, Hoosier DRs.
11.92@123.6 (JB4 ISO, DCI, IC, **, DR, on e45 & 17psi)(2013)
444whp/481wtq @19psi and e60 (2013)

2013 X3 xDrive28i M-package
JB4, K&N drop-in, ER downtube, Map 2 @ 22psi on 93
Reply With Quote
(#12)
Old
Aerotest Aerotest is offline
Junior Member

Posts: 50
Join Date: Apr 2015
Car: 335i
Default 04-02-2016, 09:29 AM

Trans coolers are a myth and not necessary.
Reply With Quote
(#13)
Old
DirtKurt's Avatar
DirtKurt DirtKurt is offline
Junior Member

Posts: 88
Join Date: Oct 2015
Car: 09 335i 6AT Coupe
Default 04-02-2016, 09:29 AM

Quote:
Originally Posted by Race8877
Is this the same like Evolution Racewerks oil coolers?
Only in the fact that it cools a fluid, one thing to note would be if you were running there dual cooler setup this would not be compatible. But thats fairly obvious from the pictures

Last edited by DirtKurt; 04-02-2016 at 09:37 AM..
Reply With Quote
(#14)
Old
DirtKurt's Avatar
DirtKurt DirtKurt is offline
Junior Member

Posts: 88
Join Date: Oct 2015
Car: 09 335i 6AT Coupe
Default 04-02-2016, 09:31 AM

Quote:
Originally Posted by seroga1986
Will this utilize the stock heat exchanger unit as some of us live in cold climates? If so, how will you hook up the outlet from heat exchanger?
No it will not.
Reply With Quote
(#15)
Old
DirtKurt's Avatar
DirtKurt DirtKurt is offline
Junior Member

Posts: 88
Join Date: Oct 2015
Car: 09 335i 6AT Coupe
Default 04-02-2016, 09:34 AM

Quote:
Originally Posted by seroga1986
Also you might want to stick to the LPD (low pressure drop) coolers that are made specifically for transmissions. Huge coolers and 30psi of pressure might be a problem.
That may* be applicable if no thermostat were being run, but with the use of the improved racing unit would actually be quite redundant. The design of the IR t stat does the same thing as a low pressure drop core but in a much more efficient manner and also without sacrificing the efficiency of the core.
Reply With Quote
(#16)
Old
seroga1986's Avatar
seroga1986 seroga1986 is offline
Junior Member

Posts: 408
Join Date: Nov 2012
Car: 135i
Default 04-02-2016, 05:57 PM

How can a thermostat be LPD?


2008 135i Sport 6at
JB4 G5 ISO, MHD E85 KR, Fuel-it S1, E55 Mix, Alpina Trans Flash, afe Scoops, My own custom 2.5" inlets, ER CP, Synapse BOV, 3.5 Tmap, 7.5" Phoenix FMIC, NGK 5992, 3" BMS downtubes, N55 Mids, Berk Race, BMS OCC, 48 plate oil cooler, 36 plate trans fluid cooler, PSS, R888, Hoosier DRs.
11.92@123.6 (JB4 ISO, DCI, IC, **, DR, on e45 & 17psi)(2013)
444whp/481wtq @19psi and e60 (2013)

2013 X3 xDrive28i M-package
JB4, K&N drop-in, ER downtube, Map 2 @ 22psi on 93
Reply With Quote
(#17)
Old
DirtKurt's Avatar
DirtKurt DirtKurt is offline
Junior Member

Posts: 88
Join Date: Oct 2015
Car: 09 335i 6AT Coupe
Default 04-02-2016, 06:53 PM

Quote:
Originally Posted by seroga1986
How can a thermostat be LPD?
Lpd tran coolers just utilize a internal bypass to allow cold "thicker fluid" to flow through easier. It's basically a work around to running a thermostat which is the better way to do it. With the ir thermostat around 90 percent of the fluid is able to completely bypass the cooler until it warms up, then it is directed to the core when it reaches temp.

But the point either way is pointless because the way the cooling circuit is designed in the 6hp pressure drop in the core has no effect on other control circuits of the transmission

Feel free to pm me if you have any other concerns.
Reply With Quote
(#18)
Old
DirtKurt's Avatar
DirtKurt DirtKurt is offline
Junior Member

Posts: 88
Join Date: Oct 2015
Car: 09 335i 6AT Coupe
Default 04-02-2016, 06:56 PM

Quote:
Originally Posted by thm8d
I'm definitely interested in this! I'll be on the lookout

Quote:
Originally Posted by E92 420
Nice work man! Would Definatly be interested in this
Thanks! Hopefully will have something ready to go in the next few weeks
Reply With Quote
(#19)
Old
seroga1986's Avatar
seroga1986 seroga1986 is offline
Junior Member

Posts: 408
Join Date: Nov 2012
Car: 135i
Default 04-02-2016, 07:19 PM

I have installed a 36 plate, 11x8 core trans cooler plumbed in with a 160 tstat and inline with the heat exchanger. Working awesome! Quick warm up times and barely hits 170 after back to back pulls. This should have been done a long time ago i think.


2008 135i Sport 6at
JB4 G5 ISO, MHD E85 KR, Fuel-it S1, E55 Mix, Alpina Trans Flash, afe Scoops, My own custom 2.5" inlets, ER CP, Synapse BOV, 3.5 Tmap, 7.5" Phoenix FMIC, NGK 5992, 3" BMS downtubes, N55 Mids, Berk Race, BMS OCC, 48 plate oil cooler, 36 plate trans fluid cooler, PSS, R888, Hoosier DRs.
11.92@123.6 (JB4 ISO, DCI, IC, **, DR, on e45 & 17psi)(2013)
444whp/481wtq @19psi and e60 (2013)

2013 X3 xDrive28i M-package
JB4, K&N drop-in, ER downtube, Map 2 @ 22psi on 93
Reply With Quote
(#20)
Old
erichale's Avatar
erichale erichale is offline
Junior Member

Posts: 397
Join Date: May 2014
Car: 335i coupe
Default 04-02-2016, 07:32 PM

Looks good. Anxious to know how that very larger cooler works out for you.


07 335i AT/CUSTOM 6870 GEN2 ST/VAC ENGINE AND STAGE 3 HEAD/FABFACTORY INTAKE W/PI/1000HP AD FMIC/EOS BILLET FUEL SETUP/BL COILS/DUAL OIL COOLERS/RB EXTERNAL PCV/PD TRANY W COOLER/M3 FRONT N REAR SUSPENSION W/ROUGE BEARINGS/HOTCHKIS ADJUSTABLE END LINKS/ADUSTABLE REAR TOE ARMS AND CAMBER LINKS/EIBACH SWAYBARS/BC RACING BR COILOVERS AND CAMBER PLATES/AKG REAR SUBFRAME, DIFF, REAR SHOCK BUSHINGS/POWER FLEX BUSHINGS/WAVETRAC REAR DIFF WITH DEFIV BRACE AND VAC COVER/4IN EXHAUST
Reply With Quote
(#21)
Old
_ink's Avatar
_ink _ink is offline
Senior Member

Posts: 530
Join Date: Nov 2012
Car: 335i DCT
Default 04-03-2016, 08:23 AM

When will you have pics of the full kit?
Reply With Quote
(#22)
Old
Race8877's Avatar
Race8877 Race8877 is offline
Junior Member

Posts: 437
Join Date: Apr 2015
Car: BMW 135I
Default 04-03-2016, 10:36 AM

Group buy later???
Reply With Quote
(#23)
Old
psychosinmylobby psychosinmylobby is offline
Junior Member

Posts: 216
Join Date: Nov 2013
Car: 07 e92
Default 04-03-2016, 12:11 PM

Any chance you can sell the brackets only? I love the way it's mounted and would like to have a dual setrab setup: one for oil and one for the 6at
Reply With Quote
(#24)
Old
Saif_335i_n54 Saif_335i_n54 is offline
New Member

Posts: 3
Join Date: Feb 2016
Car: E92 335i n54 07
Default 04-03-2016, 12:57 PM

I'd made a mishimoto cooler with fan and it's working fine
The temp between 60-75 while pull many times
Attached Images



Custom headers manifold
precision 6266 gen2
Tial westgate 44mm
NGK-R iridium spark plugs
Custom 3" down pipe
Custom 2.5" intercooler pipes
Corsa full exhaustback 3.5"
Mishemoto engine oil cooler
Mishemoto FMIC 7"
Mishemoto transmission cooler
jB4 g5
Anti lag kit
N20 Map sensor 3.5 bar
T Map adaptor
Synapse BOV
Bms sport oil cooler valve
Methanol kit dual nozzle 14+14
Fuel it lpfp stage 1
Bms oil catch can
Pcv valve
Bms cowl filters
2 step relay
Mac solenoid
Reply With Quote
(#25)
Old
alpinedevil335's Avatar
alpinedevil335 alpinedevil335 is offline
Junior Member

Posts: 130
Join Date: May 2009
Car: 09' 335i Sedan
Default 04-03-2016, 12:59 PM

Need!
